Wenzhou Hongan Machinery Co., Ltd has a large selection of fermenation tanks but also specializes in getting a custom stainless steel vessel tank quickly designed and built using our pre-engineered designs to which we can add fittings and mountings for both stainless steel 304 or316L tanks vessels.
Custom Made 50L- 30,000L fermenation tank, 20 Years Of Experience。 Reasonable Price And Best Service15-30 day fast delivery。Please Contact us for the offer
Tel:008618367778783 Email:sales@wzhongan.com
Description:

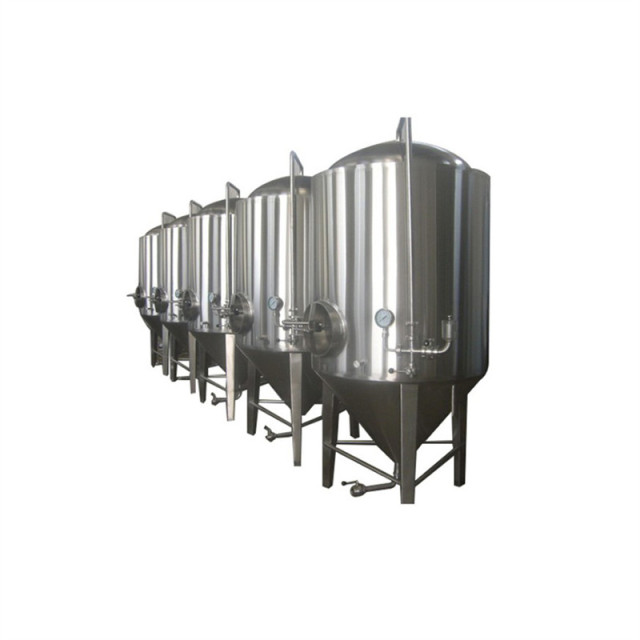

The fermentation tank is widely used in brewery processing, such as wine ,beer etc, it is a ideal equipment and be used in large restaurants or canteens to make beer.
Character:

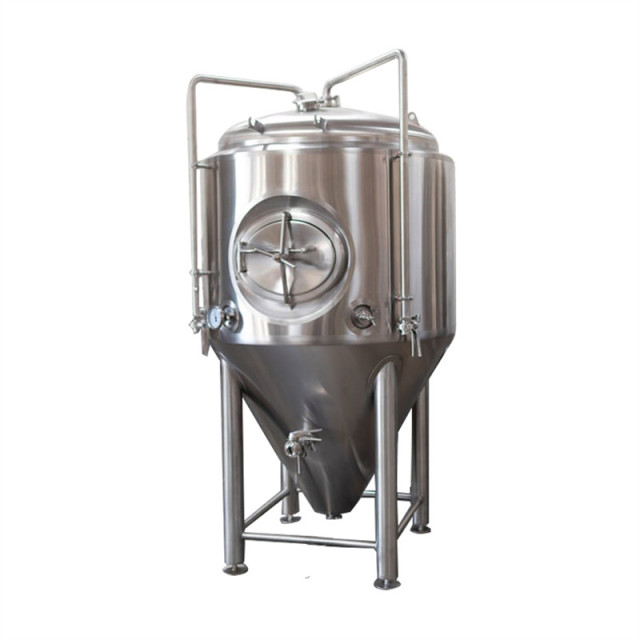

Fermenter available from 1 Barrel to 100 Barrels with an average 25% Head Space. All tank have a Dish top , Cylinder body & 60 /70° Cone Bottom . stainless steel material for all tanks, welded joints and seams with sanitary interior polish. Dimple Plate jacket for Glycol cooling & high efficient Polyurethane foam insulated. All tanks use Tri-clamp connections,
We can custom fabricate any tank to meet your brewery’s space and height restrictions.
Configuration Option:
Material: Stainless steel SUS 304 or SUS316L
Volume: 50-20000L (can be fabricated according to the client requirement)
Jacket function: Cooling
Jacket type: Dimple jacket
|
Volume |
Cylinder diameter(mm) |
Cylinder height(mm) |
Total height(mm) |
Bottom degree |
|
7BBL |
500 |
600 |
1300 |
60-90 degree |
|
10BBL |
600 |
700 |
1400 |
|
|
15BBL |
700 |
700 |
1500 |
|
|
20BBL |
800 |
900 |
1700 |
|
|
30BBL |
1000 |
1200 |
2100 |
|
|
40BBL |
1200 |
1500 |
2500 |
|
|
50BBL |
1600 |
1500 |
2600 |
|
|
60BBL |
1600 |
1850 |
2900 |
|
|
80BBL |
1800 |
2000 |
3150 |
|
|
100BBL |
1800 |
2400 |
3600 |
We can design the drawing and fabricate accoriding to your requirement.
Drawing for reference ：

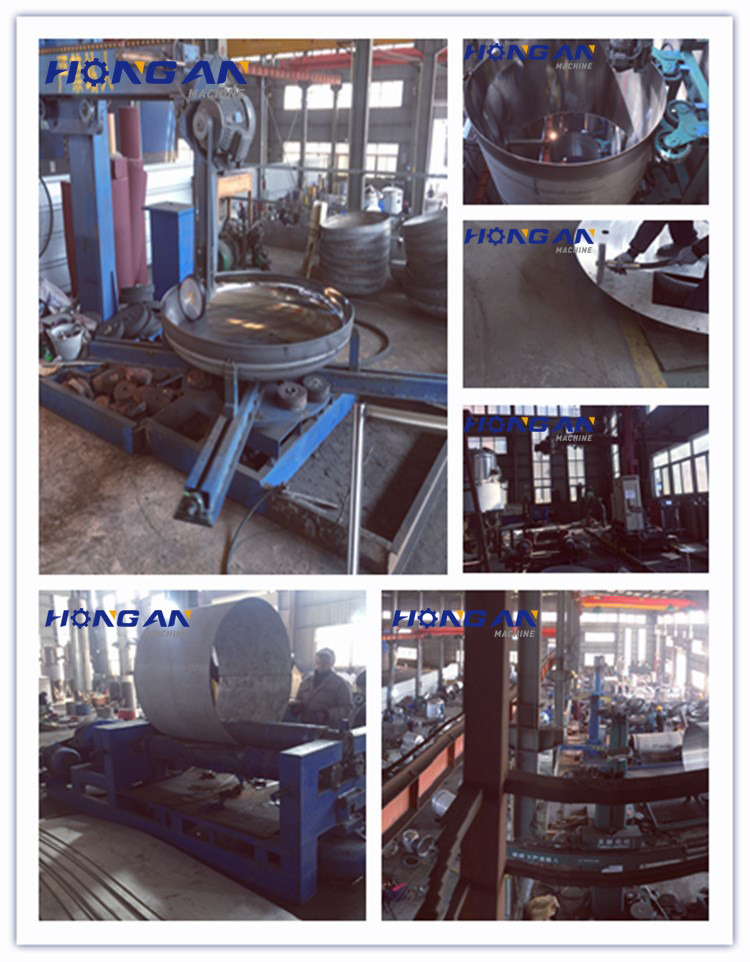

Workshop Exhibition：
