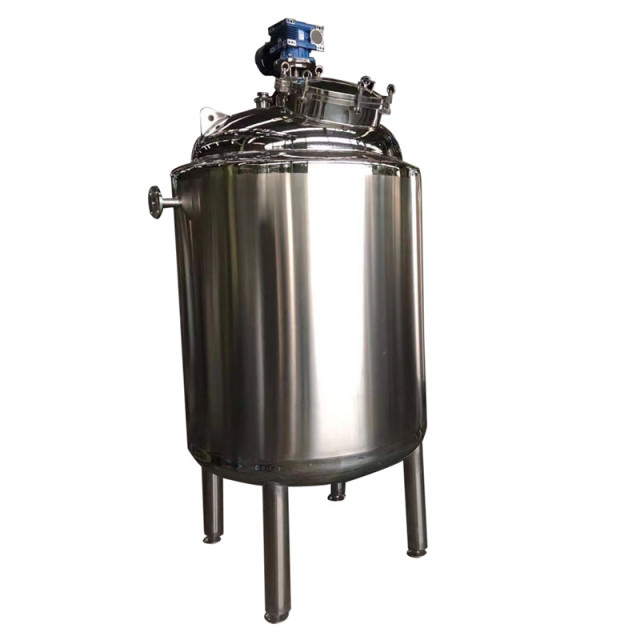

Stainless Steel Steam Jacket Mixing Tank

Wenzhou Hongan Machinery Co., Ltd has a large selection of mixing tank but also specializes in getting a custom stainless steel vessel tank quickly designed and built using our pre-engineered designs to which we can add fittings and mountings for both stainless steel 304 or316L tanks vessels.

Custom Made 50L- 30000L , 20 Years Of Experience. Reasonable Price And Best Service,15-30 day fast delivery.Please Contact us for the offer

Contact Us

Tel:008618367778783
Email:sales@wzhongan.com

Stainless steel  tank is wildly used as liquid storage tank ,liuqid composing tank ,temporary storage tank and liquid  blending tank etc .deal in fields such as food,dairy  products ,fruit juice beverage pharmacy ,chemcal industry and bilogical engineering etc

Configuration Option:

Material: Stainless steel SUS 304 or SS316L

Volume: 50-20000L (can be fabricated according to the client requirement)

Mixer: Normal agitator  or high shear homogenizer you can choose

Agitator RPM: 0-200 or fixed speed

Homogenizer RPM: 0-2900 or fixed speed

Jacket function: Heating or cooling

Pressure: Vacuum ,normal or high pressure

Extra confugiration: Sanitary valve,CIP cleaning ball

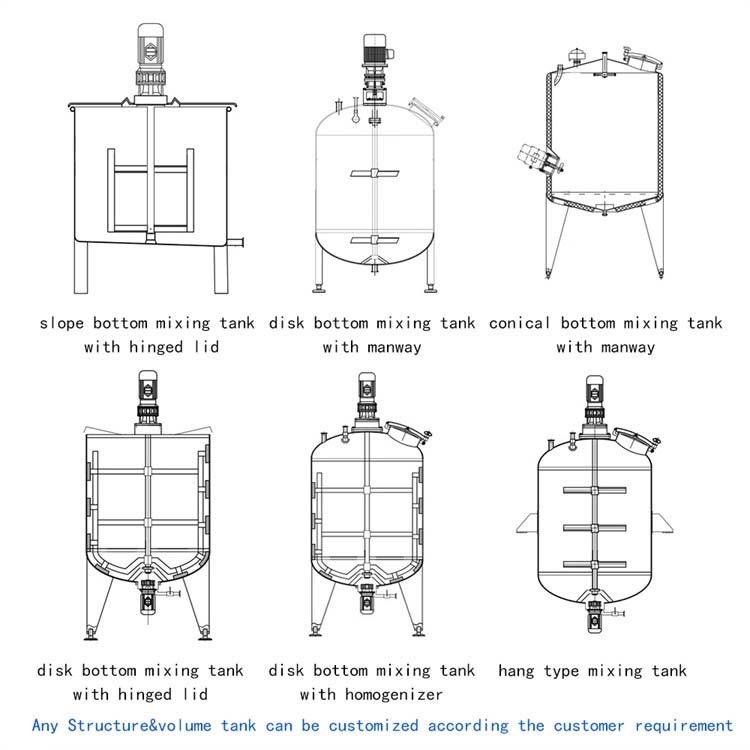

Shape choose:

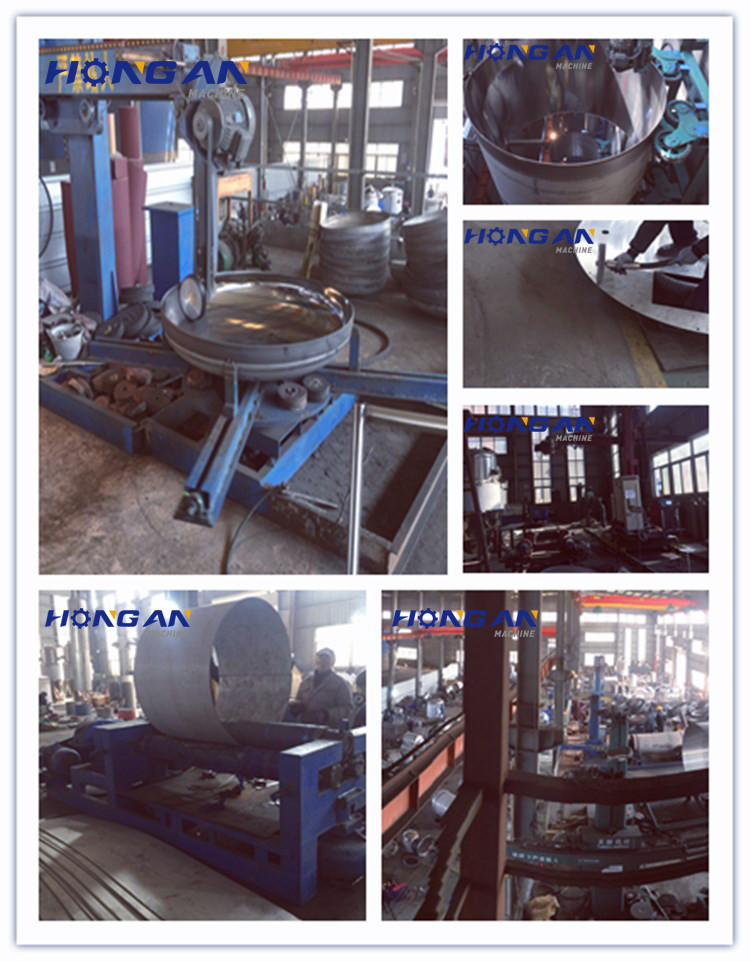

Workshop Exhibition:
