Wenzhou Hongan Machinery Co., Ltd has a large selection of chemical mixing tanks but also specializes in getting a custom stainless steel vessel tank quickly designed and built using our pre-engineered designs to which we can add fittings and mountings for both stainless steel 304 or316L tanks vessels.
Custom Made 50L- 30,000L Mixing tank, 20 Years Of Experience。 Reasonable Price And Best Service15-30 day fast delivery。Please Contact us for the offer
Tel:008618367778783 Email:sales@wzhongan.com

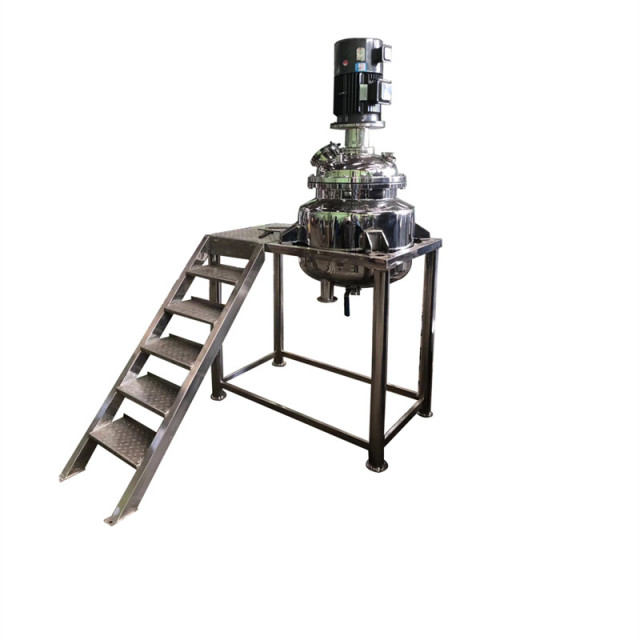

The high shear emulsifying tank is the most advanced blending equipment in such industries as dairy, beverage, food, etc. The high shear emulsifying tank produced by our company is provided with unique blending structure and outstanding mixing and emulsifying functions after we have imporve the technology. Principle and features: The blender of the machine is composed of the closely associated rotor and stator. The rotor rotates at a high speed and the stator is fixed without movement. When the highspeed emulsifying head works, it throws the materials at the center of the rotor to the stator at a high speed,then through tooth clearance of the stator, and shearing, collision and crushing between rotor and stator, the emulsification is realized.
Therefore, it is a piece of equipment integrating such functions as blending, emulsifying, homogenizing, solving, crushing and etc.
The machine is easy to use and flexible to operate. It has three kinds of structures such as single-layer heat preservation,double-layer heat reservation and jacket.
Configuration Option:
Material: Stainless steel SUS 304 or SS316L
Volume: 50-20000L (can be fabricated according to the client requirement)
Mixer: High shear homogenizer (according to your purpose to choose)
Mixer RPM:0-2900
Jacket function: Heating or cooling if you need
Pressure: Vacuum ,normal or high pressure
Extra confugiration: Sanitary valve,CIP cleaning ball
We can design the drawing and fabricate accoridng to your requirement.

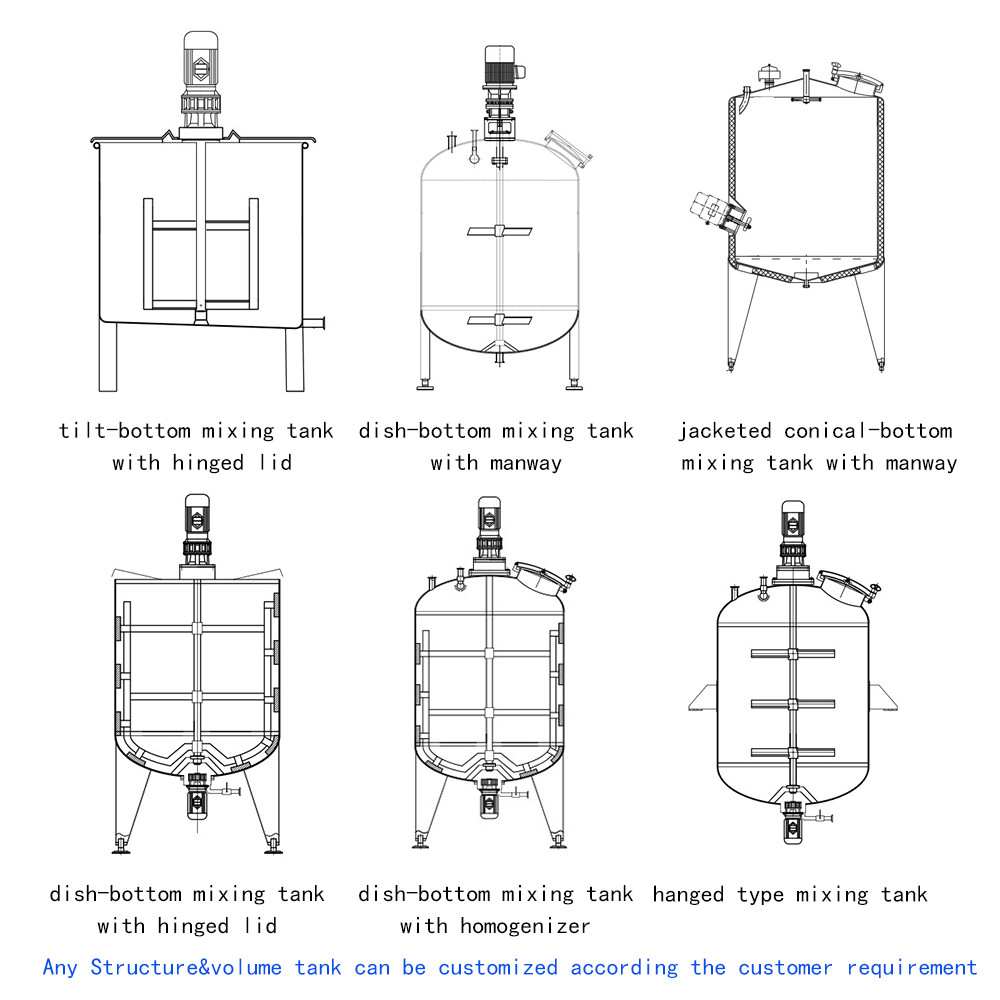

Ohter structure :

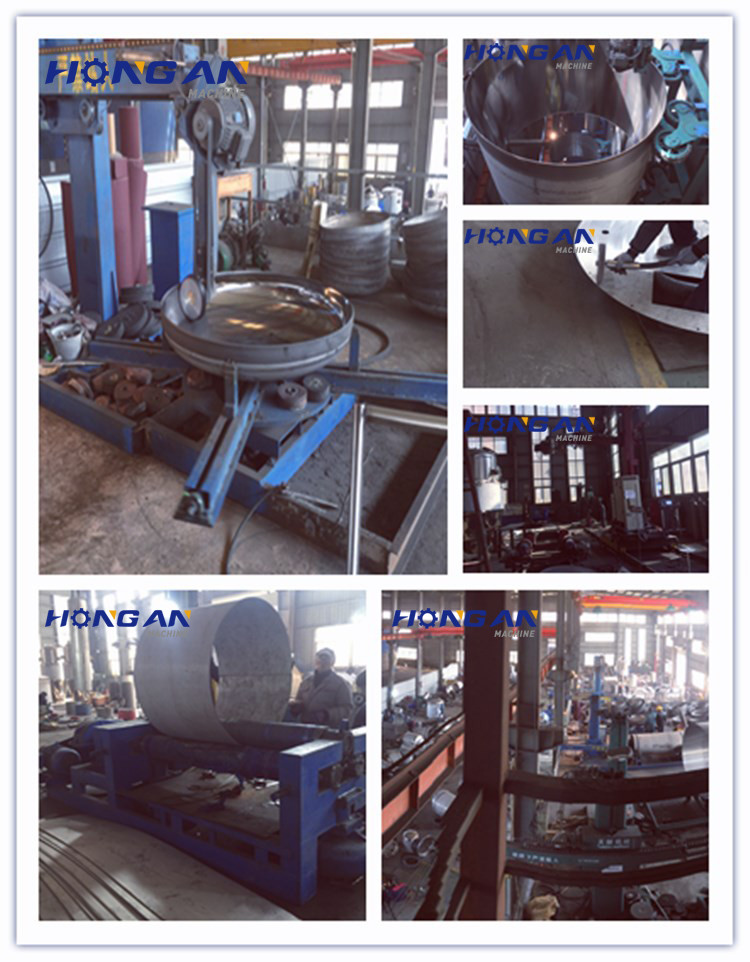

Workshop Exhibition：
