The equipment is applicable for the concentration and recovery industrial organice solvent(such as alcohol) and traditional chinese medicine,wester medicine ,glucose ,starch sugar ,oral liquid ,chemical industry ,foood and dairy products.it can be used in the low temperature vacuum concentration of heat sensitive substance with small batches and large varieties.
Tel:008618367778783 Email:sales@wzhongan.com

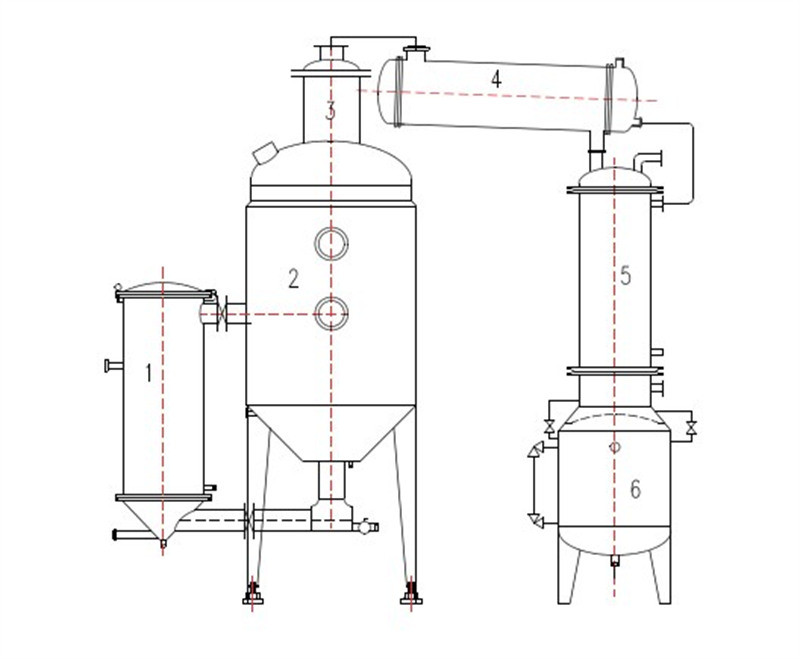

This machine including the following unit: heating tank, evaporate tank, gas/water separater, condenser, sub-cooler, collection tank and pipeline.
Machine mode:
1. machine operation mode: manual operation & automatic operation.
2. machine heating mode: steam heat model ( heating temperature≤135℃ ) & water bath heating model ( heating temperature≤60'℃, special for the bio-medicine and temperature sensitive products ).
Feature:
1. This machine is adopted outside heating circulation and vacuum condition, the inside material can be heat well and evaporated efficient fast.
2. All the system design according to GMP standard, heating tank and evaporate tank have the CIP unit, the temperature & vacuum pressure can display on line.
3. This machine have the cooling unit, it can be got high concentration solvent. the solvent recovery ratio can reach to 95%.
4. This machine have the big sight glass to inspect inside material evaporate status.
5. Water/gas separater can reduce the material lost under the evaporate process.
6. This machine can be feed raw material, out put final products and take sample online continous.
It can be fabricated according to the client requirement.
