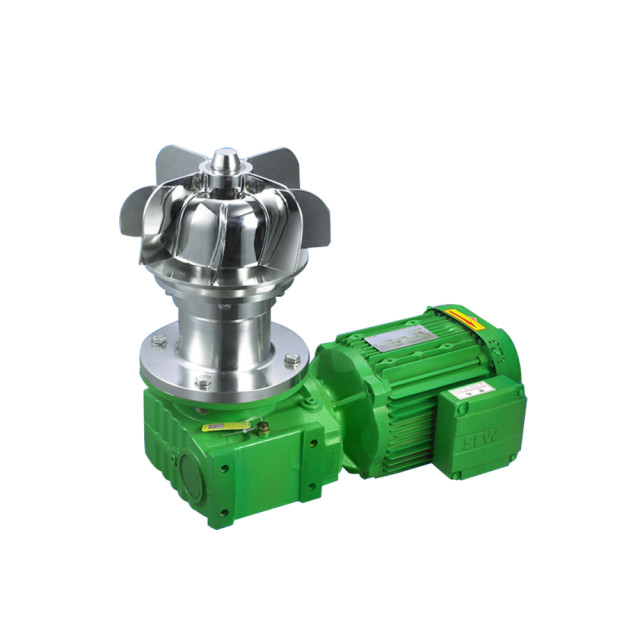

The impeller is driven by magnetic force and does not need bearings through the tank wall to drive the impeller. This eliminates the possibility of leakage from the shaft seal. At the same time, there is no need for shaft seal maintenance. The open impeller structure represents an important improvement in the design of magnetic drive agitator.
Tel:008618367778783 Email:sales@wzhongan.com
Introduction
The impeller is driven by magnetic force and does not need bearings through the tank wall to drive the impeller. This eliminates the possibility of leakage from the shaft seal. At the same time, there is no need for shaft seal maintenance. The open impeller structure represents an important improvement in the design of magnetic drive agitator.
Advantage
It completely avoids the existence of inner bubbles
CIP online cleaning process is more secure and effective
.SIP online steam sterilization process is simpler
. All liquid contact surfaces can be discharged completely
Bottom mounting: low level mixing for easy maintenance
Magnetic drive: no mechanical seal, reduce the risk of pollution
Excellent stirring performance
Model
Impeller size
power
capacity
RPM
HA90
Φ90（3pcs）
0.18kw
20L-50L
355
HA120
Φ120（4pcs）
0.25kw
80L-200L
355
HA155
Φ155（8pcs）
0.37kw-0.55kw
300L-500L
355
HA200
Φ200（8pcs）
1.1kw
1000L-2000L
355
HA220
Φ220（8pcs）
1.5kw
3000L
355
HA240
Φ240（8pcs）
2.2kw
4000L
355
HA270
Φ260（4pcs）
3.0kw
5000L
355
HA320
Φ320（8pcs）
4.0kw
6000L-15000L
355

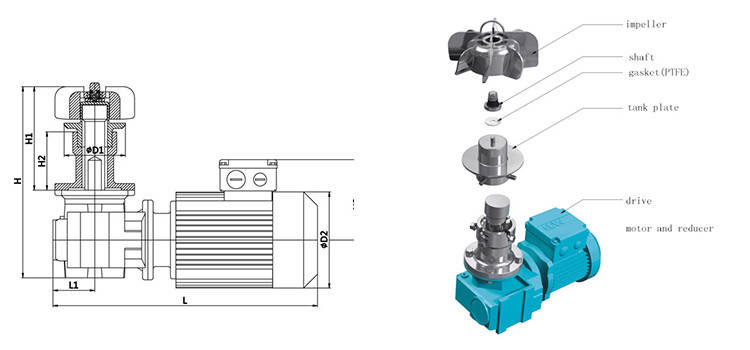

model
L
L1
H
H1
H2
H3
D2
D1/plate/vessel hole size
HA90
334
63
290
158
80
129
139
92
HA120
346
63
294
162
88
129
139
92
HA155
371
63
309
177
109
129
139
115
HA200
411
63
365
233
139
139
156
180
HA220
463
75
374
233
139
150
156
180
HA240
463
75
386
245
140
150
179
190
HA270
463
75
386
245
140
150
179
190
HA320
463
75
431
290
160
150
179
235
