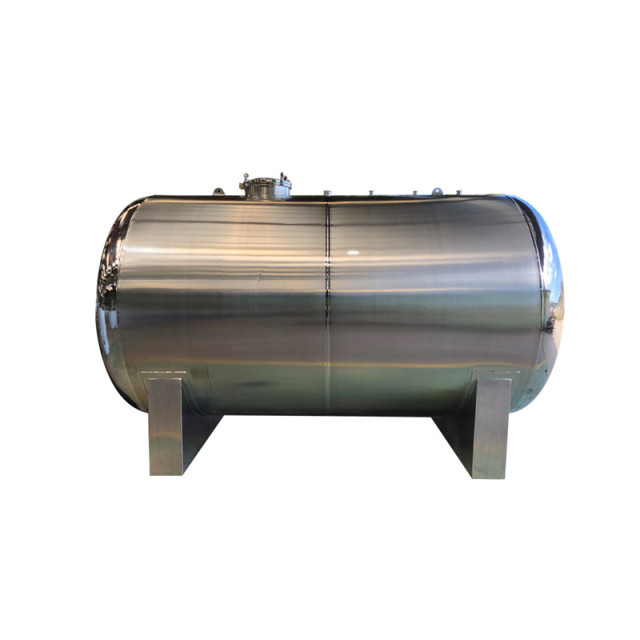

Wenzhou Hongan Machinery Co., Ltd has a large selection of storage tanks but also specializes in getting a custom stainless steel vessel tank quickly designed and built using our pre-engineered designs to which we can add fittings and mountings for both stainless steel 304 or316L tanks vessels.
Custom Made 50L- 30,000L storage tank, 20 Years Of Experience。 Reasonable Price And Best Service15-30 day fast delivery。Please Contact us for the offer
Tel:008618367778783 Email:sales@wzhongan.com
Structure characteristics:
Made of single-layer,double layer or three layer stainless steel structure.
Materials are all sanitary stainless steel.
Humanized structure design and easy to operate.
Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.
Configuration of tank:
1.Quick open manhole.
2.Various types of CIP cleaners.
3.Fly and insect resistant sanitary breathing cover.
4.Adjustable triangular bracket.
5. Dismountable materials input pipe assembly.
6.Thermometer (According to customer requirements).
7.Ladder (According to customer requirements).
8.Liquid level meter and level controller (According to customer requirements ).
9.Eddy-proof board.
Finish: Mirror or Matt Polish; Ra<0.4um
1. Material:Stainless steel, austenitic stainless steel 304, 316L etc, with insulating material or not
2. Tank shell thickness:3mm at least (according to the design or your required)
3. Design work pressure (MPa):-0.1~~1.6MPa (According to the China national standard, breakthroughs in the foregoing measurements
are allowed in special cases)
4. Design work temperature:-4~~+150C.
5. General accessories(If required):Manhole, CIP, respirator, sight glass, mixing(Top side or bottom)

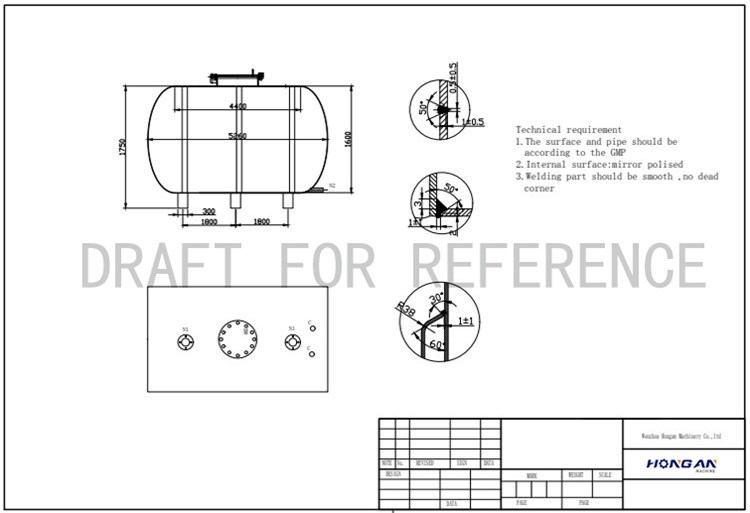

We can design the drawing and fabricate accoridng to your requirement

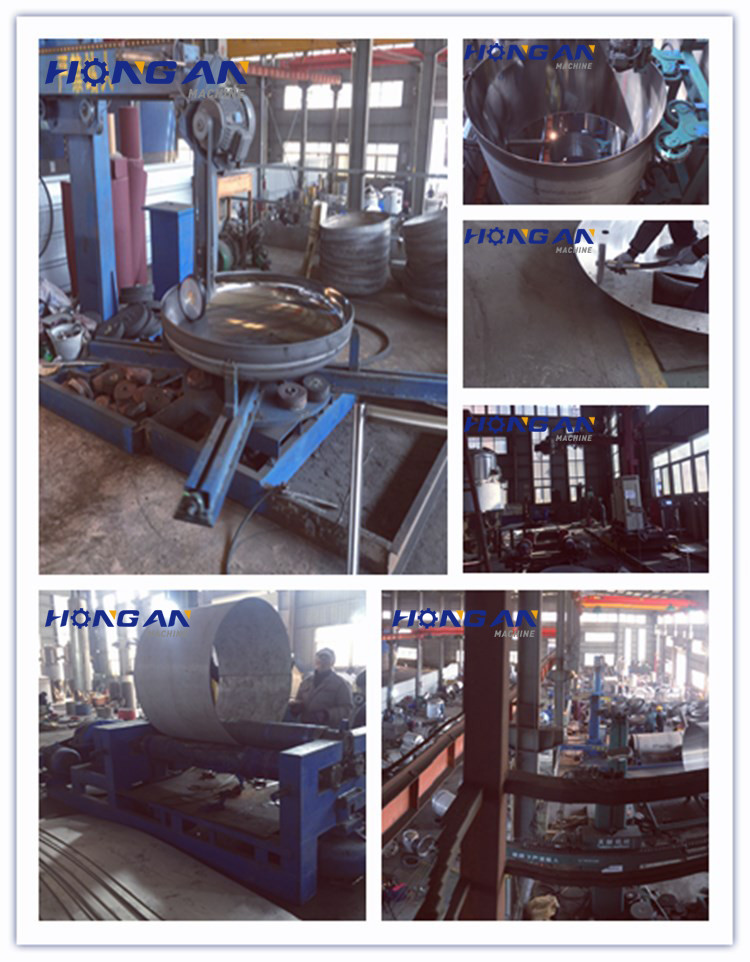

Workshop Exhibition：
